The Web Site to Remember National Semiconductor's Series 32000 Family

VCFe 2011

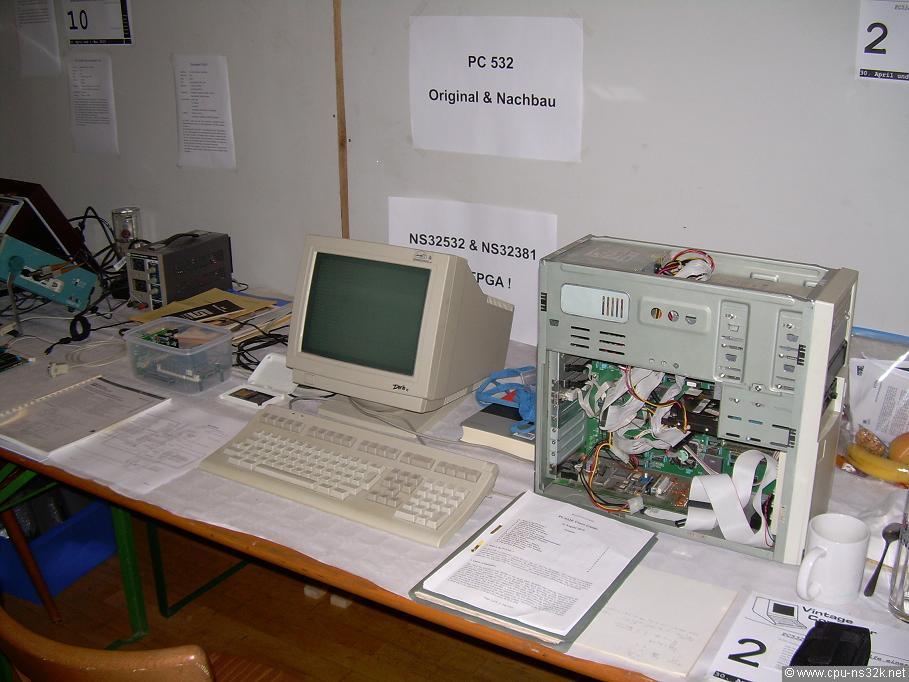

The Vintage Computer Festival Europe (www.vcfe.org) is an event to show old computers (no PCs!), peripherals and selfmade hardware. In 2011 I had for the first time a booth showing a PC532 from a colleague and my PC532E. In Figure 1 you can see the small plastic box to the left which contains the PC532E. Unfortunately the PC532 was not functional. The PC532E runs all the time and draw some attention from the visitors regarding the ESD robustness of the plastic box. Of course I used an old CRT based terminal with a serial interface as Input/Output device.

Fig. 1. My booth at VCFe 2011.

VCFe 2014

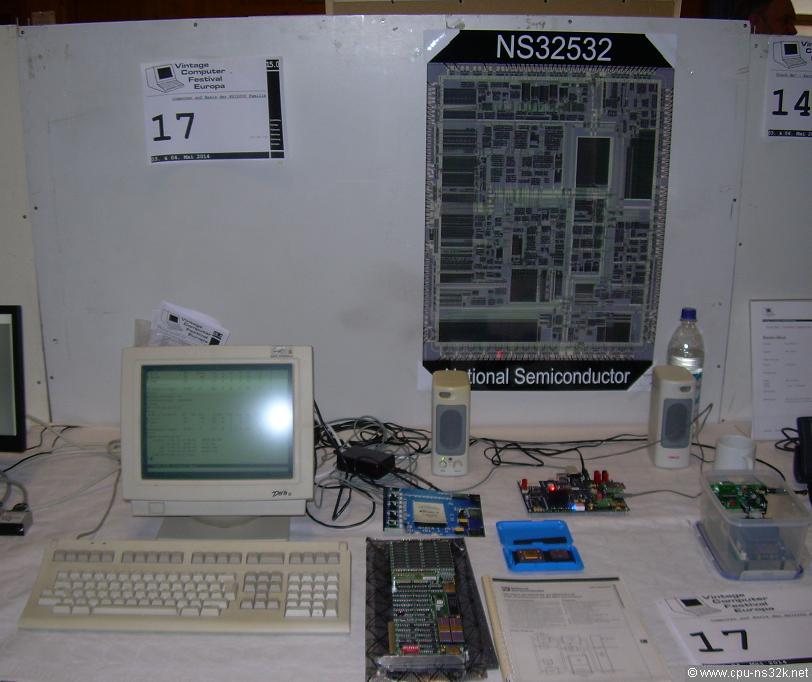

I used a large photo of the NS32532 CPU die as an eye catcher at VCFe 2014. Other parts at the exhibition were the Opus board, the PC532E and the PLAYER, an FPGA development system based on Stratix II serving as an MP3 player. The system becomes ready shortly before the exhibition and I had only one song to play from the SD card. Of course the old CRT terminal was in use again.

Fig. 2. My booth at VCFe 2014.

VCFe 2015

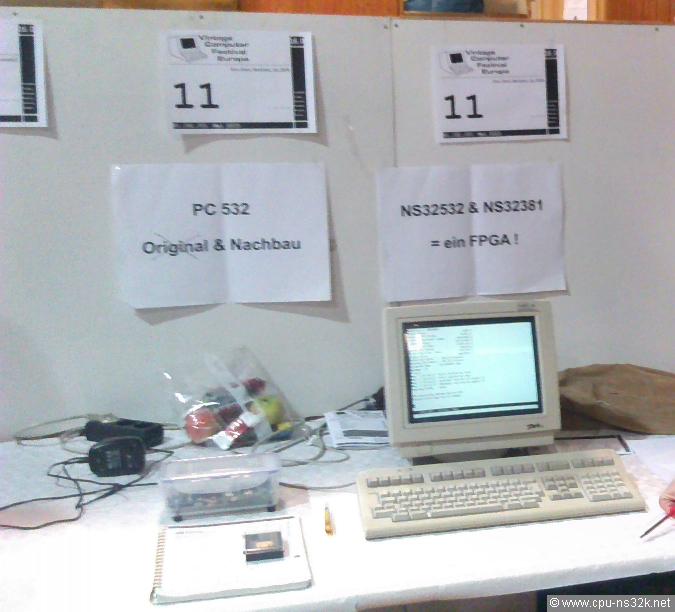

In 2015 I could present my M32632 running NetBSD. Once again I used a plastic box as a case for the PC632M. Unfortunately I could not present the original PC532 as an eye catcher. Nevertheless I faced a lot of attention. This time the event took three days and because of bad weather it was well visited. The old CRT terminal is only used for the VCFe exhibitions. The photo is taken shortly after the opening.

Fig. 3. My booth at VCFe 2015.

VCFe 2018

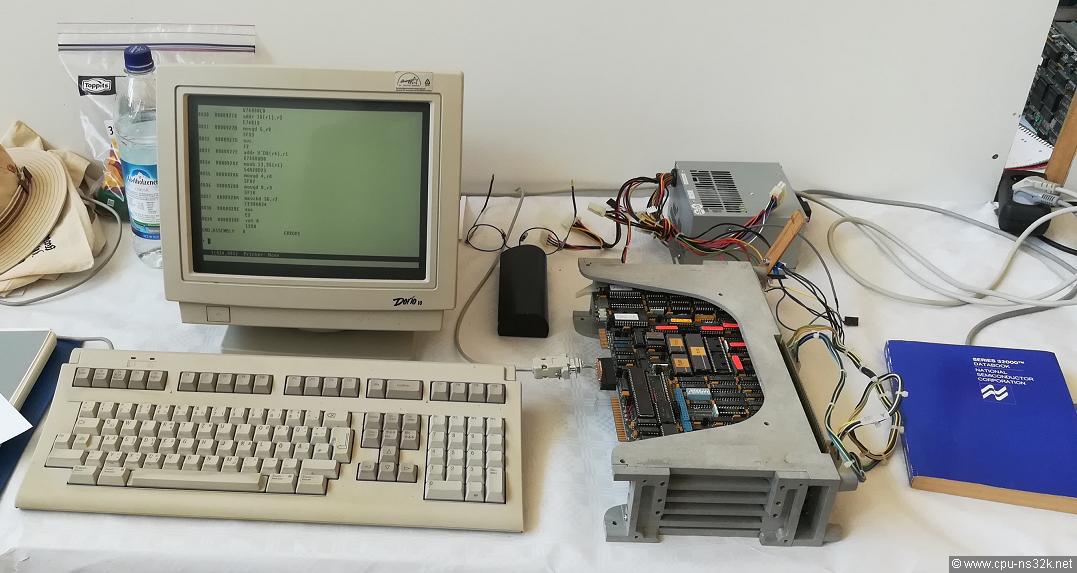

In 2018 I presented my DB32016. Entering a demo program was a bit time consuming. The program counted seconds and let a LED blink. My old CRT terminal worked once again perfect. The photo is taken early after the opening.

Fig. 4. My booth at VCFe 2018.

This chapter was last modified on 4 May 2018. Next chapter: ISE Cable
